Helix NVRs support both FTP (File Transfer Protocol) or SFTP which are both a standard network protocol used for the transfer of computer files between a client and server on a computer network. FTP can be set up for each channel directly from your NVR and will store events to a selected user interface or FTP client. For more information on how to set up FTP on your NVR please refer to the information provided below.
Step 1: Open the web user interface (Web UI) of your device using a web browser. For more information on how to access the web UI, click here.

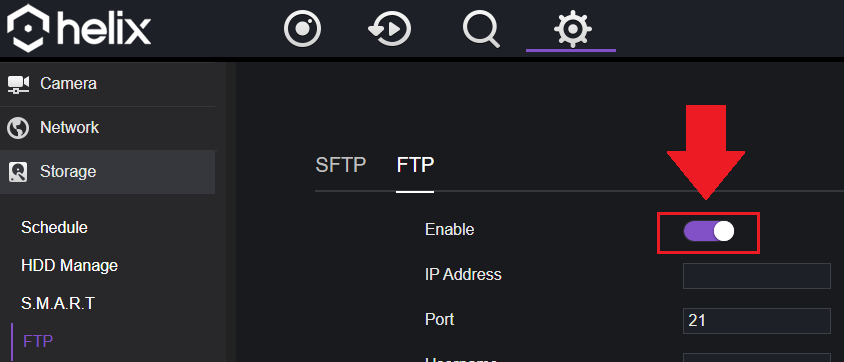

Step 2: Navigate to Settings>>Storage>>FTP>>FTP and enable the feature
Step 3: Enter the server address, username, password, and remote directory folder into the appropriate field. In the Port field, make sure the port number is set to 21. Click Apply.
Step 4: Click the Test button to test the connection status to the FTP server.
The events detected by the device will now be directed to store and can be accessed in the FTP remote directory folder specified.
