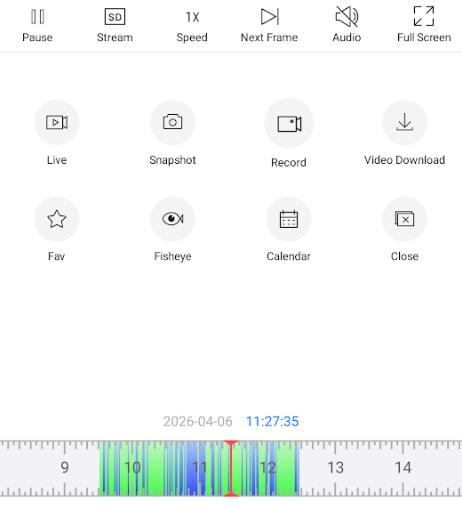

The Playback menu provides a user-friendly interface which allows you to search footage by calendar, drag a color-coded timeline (green for schedule, blue for events) and control up to four channels of simultaneous video (NVR) with variable speed and audio options.
Play/Pause: Play or pause the recording you are viewing in the timeline.
Stream: Switch between mainstream and substream while viewing playback.
Speed: View the recordings at a faster or slower speed.
Next Frame: View a recording frame by frame.
Audio: Listen to the audio captured in the recording.
Full Screen: Set the recording to full screen mode.
Live: Quick access back to the live view menu of the device.
Snapshot: Take a manual snapshot of the event you are viewing.
Record: Record a manual recording of the event you are viewing.
Video Download: Download a recording from the app to your mobile device. To download a recording, enter the start and end time of the event you would like to download and tap Start Download. The event will start to download, to check the status of the download click Check download progress. The event will be downloaded to your mobile device. For more information on the video download menu, click here
Favorite: Add new or view favorite devices.
Fisheye: Use the in-app “fisheye” features.
|
|
|
| Optimized for a 360° overhead "bird's eye" view. | Optimized for a 180° panoramic view, correcting the horizon so it doesn't look curved. | Optimized for ceiling or wall mount view to auto rotate through the image. |
|
|
||
| Displays the raw 360° circular view. This is usually the only mode where the camera’s built-in intelligent analytics (like line crossings) are visually overlaid. | Flattens the circular image into a wide rectangular strip, ideal for wall-mounted cameras covering a hallway or parking lot. | Splits the screen into four independent, dewarped rectangular windows. You can move each window to a different area of interest within the 360° field. |
|
|
|
|
| Splits the 360° view into two 180° strips (top and bottom), allowing you to see "front and back" simultaneously. | While in wall mounted mode, it provides larger viewing angle of original fisheye view. | Exit and close fisheye menu. |
Calendar: Use the provided calendar to view recordings on different dates & times. If a recording is present, it will have a green dot under the date
Close: Manually exit or open the stream.
Timeline: Scroll through the timeline to view events in playback.
